Wheel of Fortune Electronic Game
Experience the fun of the classic Wheel of Fortune gameshow at home! With 300 puzzles and sound effects from the official show, this 1-player or team handheld unit is fun for players of all ages.
I managed this product from start to finish, coming up with the initial idea for an electronic handheld, through ideation and prototyping all the way to the final product. I worked closely with internal teams, the licensor (Sony), and our overseas factory to hit deadlines and meet licensing requirements.

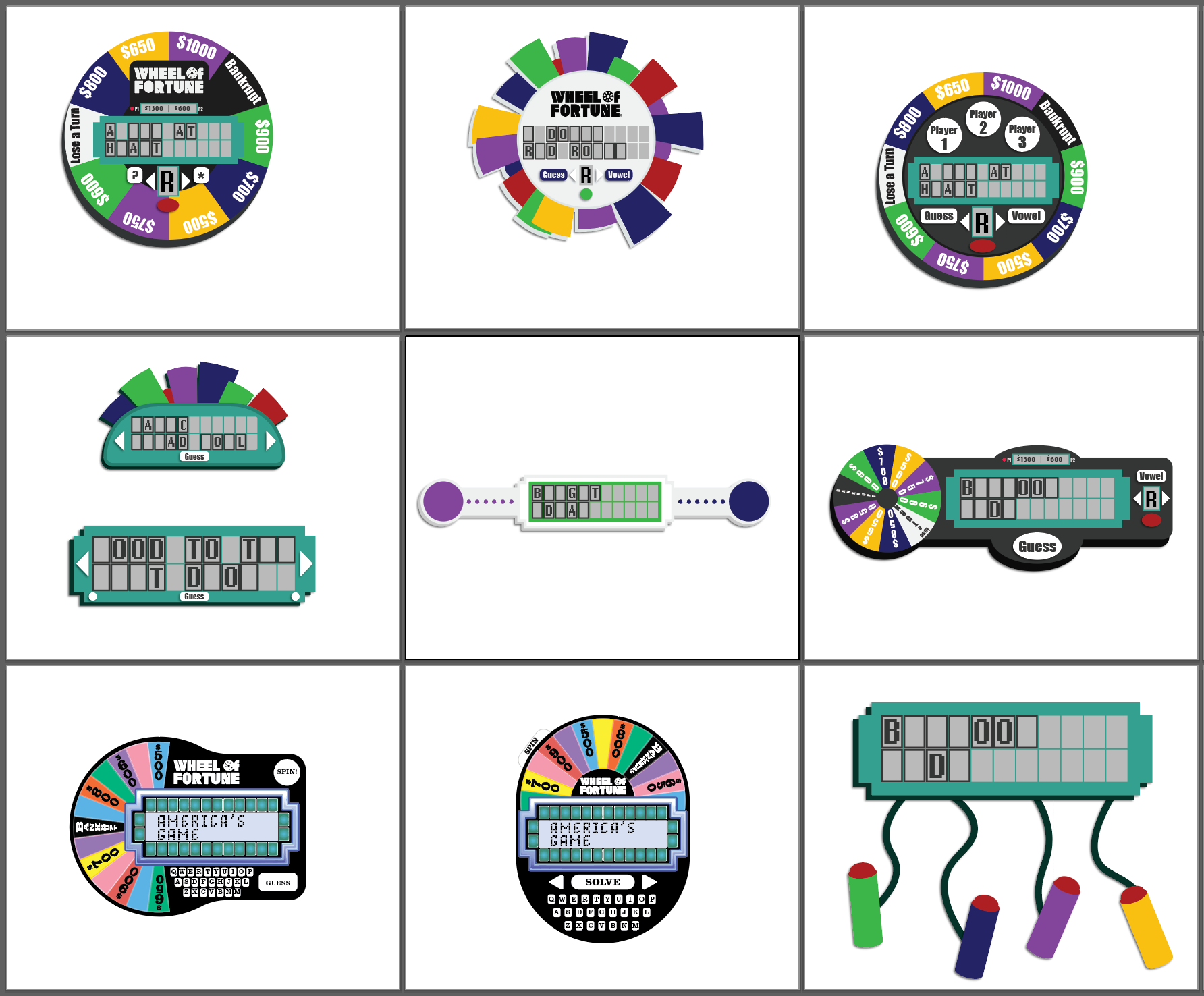

Initial Ideation Sketches
Initial Ideation Sketches
3D Printed Prototype
3D Printed Prototype
Hand-sample With Update Cable
Hand-sample With Update Cable
Final Version
Final Version
I did initial ideation sketches before choosing the current iteration, with team and licensor approval. I built the 3D model in Autodesk Fusion. I then used on-site machines to 3D print a prototype to test ergonomics and portability.
I used an updatable unit to test the programming with the factory. I tested over 2 dozen versions, conducting user testing and gaining stakeholder approval as needed.
I adapted the gameplay from the TV Show for a single-player handheld game, following licensor input and approval.
I created a wireframe and used it to work with the factory to develop the programming for the unit. A small sample is shown in the wire-framing screenshot (at size 12 font when printed the wireframe for this is over 6-feet tall).
I worked with the copywriter to write and finalize the script for the game, making sure to use key catchphrases from the show. I scheduled studio time and directed the voice actor in the recording studio. I then used Audacity® to edit and collate the audio and worked with the factory to optimize the voice recordings and licensed show sound effects for the toys speakers.​​​​​​
Wheel of Fortune Electronic Game is property of Educational Insights®
Wheel of Fortune is property of ©2025 Califon Productions, Inc.
Find more information here: https://www.educationalinsights.com/item-wheel-of-fortune-electronic-game​​​​​​​
